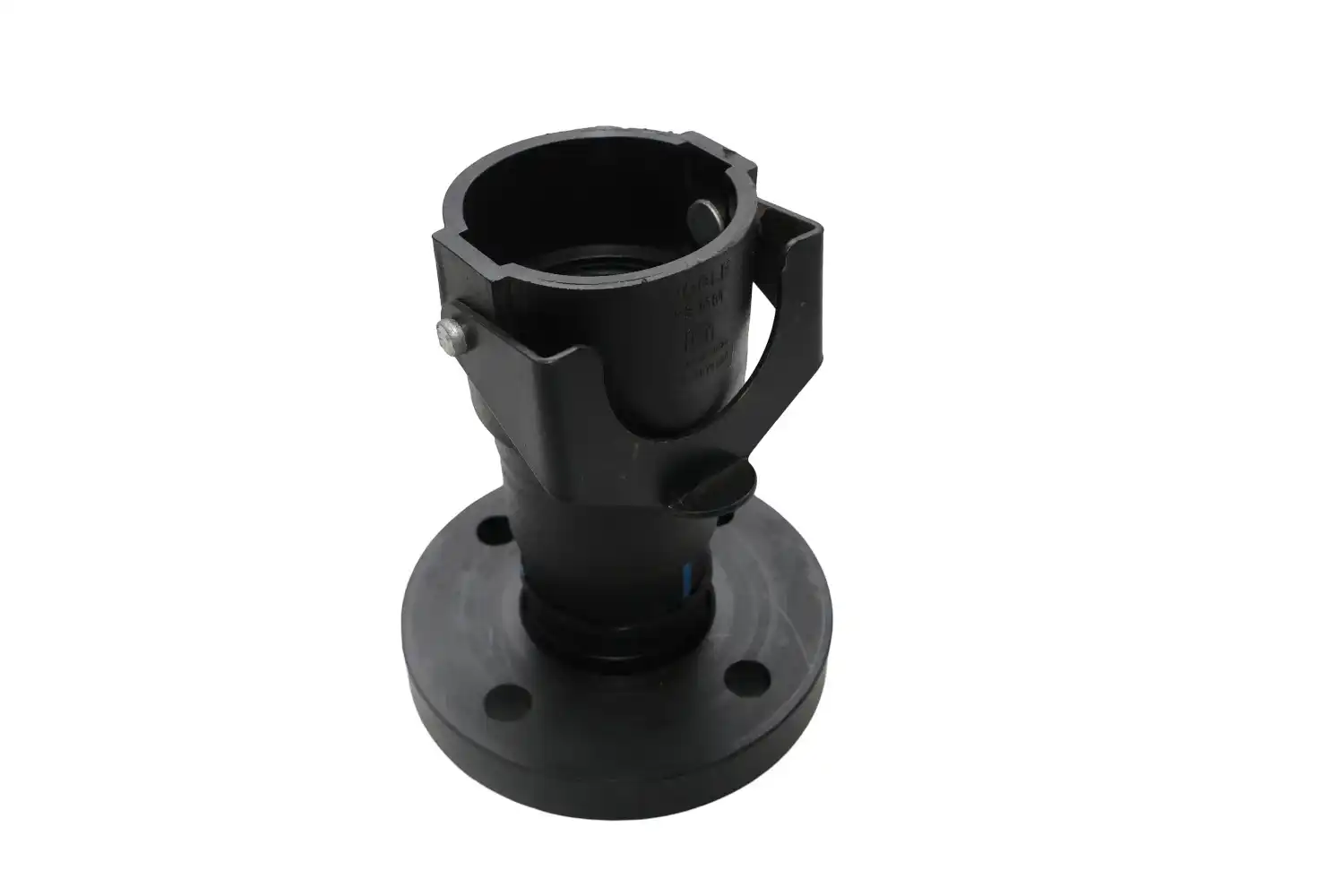

A "Female with Flange" fitting is a pipe connector designed with:
- A female end (internally threaded or socket-type) on one side
- A flanged end on the other side, which can be bolted to pumps, valves, or flanged pipes.
Key Features:
Female End:
- Accepts male-threaded fittings or pipe ends
- May be threaded (BSP/NPT) or plain socket for solvent weld (PVC)
Flanged End:
- Flat surface with bolt holes, used to connect securely with other flanged components
- Requires a gasket and bolts for a leak-proof connection
Materials:
- Available in PVC, HDPE, PP, Cast Iron, or Stainless Steel, depending on usage
Sizes:
- Common diameters:½ inch to 6 inches or larger
TYPE PCN
- Irrigation mainline and valve connections
- Water supply and drainage systems
- Pump and filter connections
- Industrial piping and fluid transfer systems
- Tank outlet fittings
- Combines the ease of threaded/socket connection with the strength of flanged joint
- Leak-proof and durable
- Facilitates easy maintenance or disconnection
- Suitable for high-pressure and frequent-use systems.
