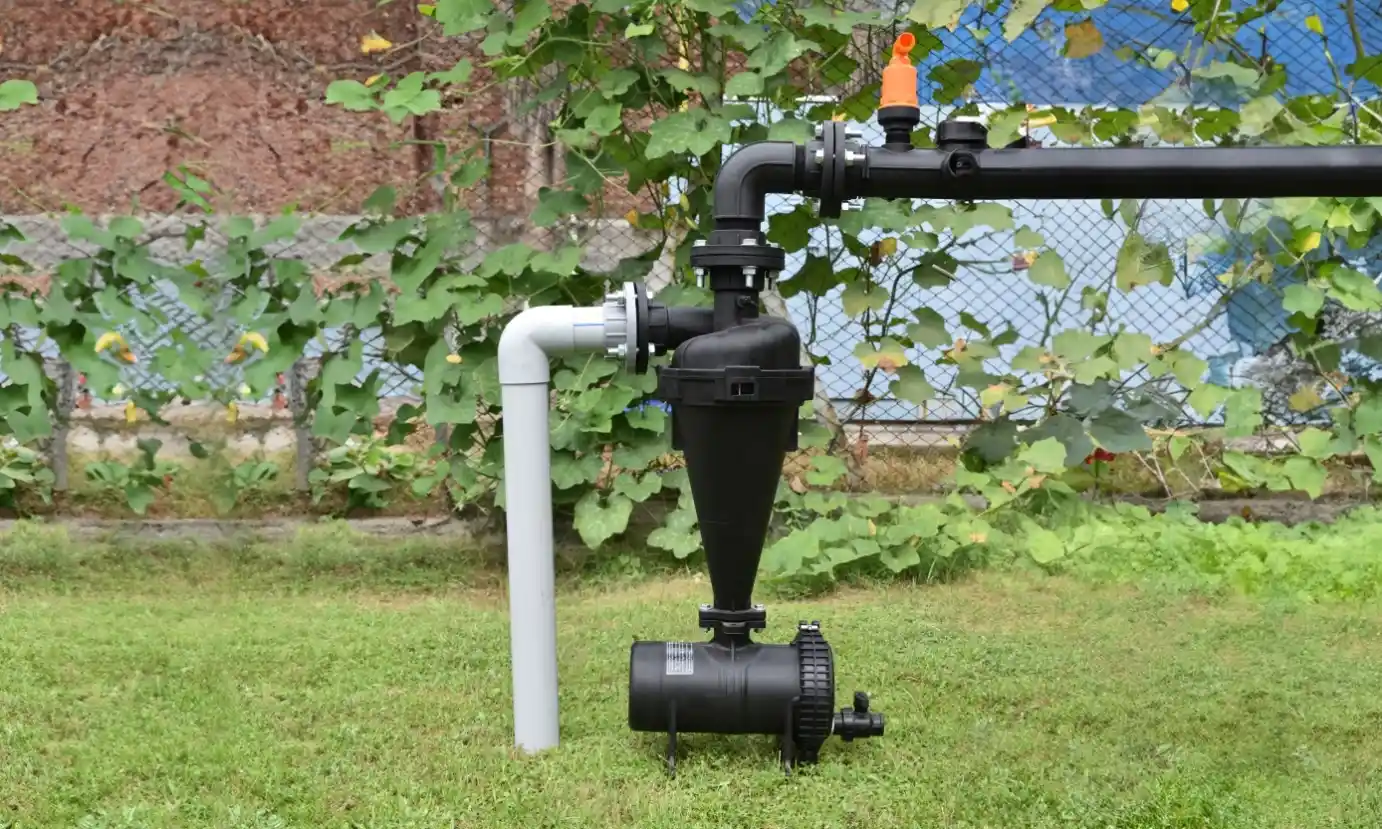

Hydrocyclone Filter Flange Elbow

hydrocyclone-filter-flange-elbow
hydrocyclone-filter-flange-elbow

High-Performance Hydrocyclone Filter Flange Elbow for Efficient Filtration

The Hydrocyclone Filter Flange Elbow is a specialized filtration solution designed to remove sand, silt, and heavy particles from water using centrifugal force. Engineered for durability and performance, this system ensures effective separation while maintaining smooth water flow in irrigation and industrial pipelines.



Key Components

  • Hydrocyclone Body: Made from heavy-duty metal or reinforced engineering plastic
  • Flanged Elbow: 90° elbow with flanged ends for secure pipe alignment
  • Sediment Tank: Collects separated sand and heavy particles
  • Drain Valve: Enables easy flushing and cleaning of collected impurities


Technical Specifications

Specification | Details
Inlet/Outlet Sizes | 2”, 2.5”, 3” and above
Available Sizes | 63 mm, 75 mm, 90 mm
Pressure Rating | Up to 6–10 Bar (model dependent)
Flange Standard | ANSI / DIN compatible
Installation | Vertical or horizontal


How It Works

The Hydrocyclone Filter Fitting operates using centrifugal force to separate heavier particles from water efficiently.

Working Principle:

  • Water enters the unit tangentially through the inlet
  • A high-speed vortex is created inside the hydrocyclone body
  • Heavier particles like sand and silt move outward due to centrifugal force
  • These particles settle in the sediment tank at the bottom
  • Clean water exits through the outlet


Working Benefits:

  • Continuous filtration without interruption
  • Efficient separation of heavy particles
  • Protects downstream filtration systems

Reduces system wear and maintenance

Why Choose Shree TNB Polymers Limited

Shree TNB Polymers Limited is a reliable Hydrocyclone filter flange elbow exporter with over 30+ years of experience in delivering advanced filtration solutions.

Key strengths:

  • Trusted Hydrocyclone flange elbow manufacturer in India
  • Reliable Hydrocyclone flange elbow supplier for bulk requirements
  • Competitive Hydrocyclone filter flange elbow price
  • Strong distribution and export network
  • High-quality products with strict quality control


NOBLE (Manufacturing Unit of Shree TNB Polymers Limited)

NOBLE, the manufacturing unit of Shree TNB Polymers Limited, specializes in producing high-quality micro irrigation and filtration systems. With advanced infrastructure and in-house testing facilities, NOBLE ensures that every product meets required industry standards.

The unit manufactures On-line Micro Irrigation Systems, Integral Drip Lines (IS 13488:2008), and Plain Laterals (IS 12786:1989). It also produces sprinkler systems in multiple sizes as per IS standards and supplies ISI-marked irrigation accessories.

With a strong technical foundation and over 30+ years of experience, NOBLE delivers reliable and efficient solutions for irrigation and water management systems.


Shree TNB Polymers Limited Download
TNB Polymers Catalogue Download

Get a Quote

Our team is ready to help you choose the right Hydrocyclone Filter Flange Elbow for your application.

Looking for a reliable solution?

Contact us today to get:

  • Product recommendations
  • Latest Hydrocyclone Filter Flange Elbow price
  • Technical specifications and support


📞 Phone: +91 99783 08650

📧 Email: noblepolymers@gmail.com

🌐 Website: https://www.shreetnbpolymers.in

Frequently Asked Questions

It is a filtration unit designed to remove sand and heavy particles from water using centrifugal force, with a flanged elbow for easy pipe connection.

It is used in agricultural irrigation, borewell water filtration, industrial systems, and as a pre-filter before disc or screen filters.

Water enters tangentially, creating a vortex that separates heavier particles, which settle in the sediment tank while clean water flows out.

It is available in sizes like 63 mm, 75 mm, 90 mm, and inlet/outlet sizes such as 2”, 2.5”, and 3”.

The price depends on size, material, and specifications. Contact the supplier for exact pricing details.

It removes up to 90% of sand, reduces clogging, improves system efficiency, and requires minimal maintenance.

Yes, we are a trusted Hydrocyclone filter flange elbow exporter and supplier providing bulk supply across regions.
