Between the water source and the first lateral line, a drip irrigation system has one section that decides how well everything downstream will work. It is where water gets filtered, measured, controlled, and sometimes dosed with fertilizer before it enters the field. Farmers often call it the head unit or control head, and it is also the section most likely to be improvised, with parts added one at a time as problems appear.
That approach tends to create the very problems it tries to fix: pressure that drops after the filter, connections that leak under load, or a cleaning routine that is awkward enough to get skipped. Understanding what a head unit contains, and how its parts relate to each other, makes it much easier to plan one that works from the first season.
What Is a Head Unit in Drip Irrigation?

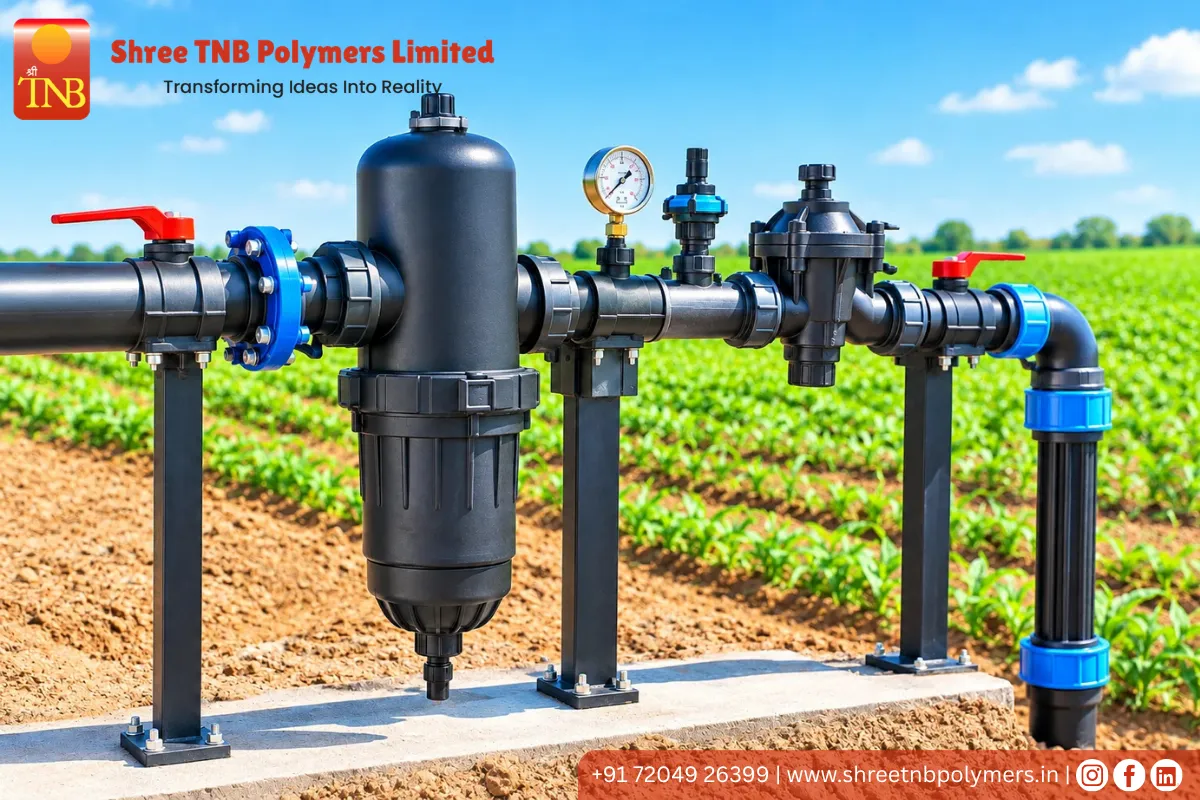

A head unit is the group of components installed at the start of an irrigation network, between the water source or pump and the main line. Its job is to clean the water, control flow and pressure, and, where fertigation is used, introduce nutrients before water moves into the field.
A head unit port is the connection point within that assembly where individual components, such as filters, valves, injectors, and gauges, are joined to the pipework. Because every component attaches through some kind of port or fitting, the quality and layout of these connections affects how reliable the whole unit is over time.
Core Components of an Irrigation Head Unit
The exact build depends on the farm, but most head units are made from a similar set of functional parts.
Filtration. Filters protect everything downstream from sediment and organic matter. Depending on the water source, this may be a screen filter for lighter loads, or a combination of hydrocyclone and disc filtration where sand and silt are heavier. If you are still deciding between filter types, our guide to choosing the right disc filter for agricultural irrigation covers the trade-offs in more detail.
Control valves. Valves isolate sections for maintenance and regulate how much water moves into each zone. A simple PVC ball valve is often used for isolation, while zone control may need a different valve type depending on the layout.
Fertigation equipment. Farms that apply fertilizer through the system add an injection point. A venturi injector draws fertilizer solution into the water line, usually working alongside a fertilizer tank that holds the solution.
Pressure gauges. Gauges placed before and after the filter show the pressure difference across it, which is the most practical signal that a filter needs cleaning. They are also the quickest way to confirm whether the system is running at its intended pressure.
Air release and non-return arrangements. Depending on the design and the pump setup, many head units also include a way to release trapped air and prevent backflow. These are worth confirming with your supplier for your specific layout rather than assuming they are included.
Connection points and fittings. Adapters, unions, and fittings link all of the above to the pump outlet and the main line. This is where the head unit port range fits, since it covers the connection side of the assembly rather than the filtering or dosing itself.
How the Components Are Usually Arranged
Layout varies between farms, but a common sequence runs from the pump through fertigation and filtration, then past pressure gauges and control valves, and finally into the main line.
A few practical points about that order:
- Fertilizer is often injected upstream of the final filter so that any undissolved particles are caught before reaching the field, though this depends on the design and the type of fertilizer used.
- Pressure gauges are placed on both sides of the filter, so the pressure drop can be read directly.
- Isolation valves sit where a section needs to be shut off for cleaning without stopping the rest of the system.
- Cleaning access matters as much as the layout itself. A filter that is hard to reach is a filter that gets cleaned less often.
How to Choose Head Unit Components for Your Farm
Selecting components works best when you start from the field and the water source rather than from a parts list.
- Water source and quality. Borewell, canal, and pond water carry different loads, which affects the filtration stage you need.
- Total flow requirement. The head unit has to carry the combined flow of every zone that may run at the same time, so undersizing here limits the entire system.
- Pipe sizes at the connection points. Components should match the diameter of the pump outlet and the main line, with fittings that handle the operating pressure.
- Fertigation plans. If fertigation is planned now or in a later season, leaving space and connection points for it is easier than retrofitting later.
- Farm size and growth plans. A unit sized only for the current plot can become a bottleneck when more acreage is added.
- Maintenance access. Think about who will clean filters and how often, and choose a layout that makes that task simple.
Common Head Unit Problems and How to Avoid Them
- Low pressure after the filter. This often points to a partly blocked filter or a component sized too small for the flow. Reading the gauges before and after the filter helps tell the two apart. The reasoning behind pressure loss is covered in our post on how irrigation pipes affect water pressure and flow efficiency.
- Leaks at connections. Poorly seated joints or a mismatch between fittings and pressure class are common causes. Bonded PVC joints depend on correct preparation, and solvent cement needs proper application and curing time before the unit is pressurized.
- Filters that clog quickly. This usually means the filtration stage does not match the water source. Our guide on how to prevent clogging in drip irrigation systems explains how to match filtration to water conditions.
- Uneven flow reaching the field. If pressure at the head unit is correct but zones still perform differently, the cause may lie further along the network rather than in the head unit itself.
- Installation shortcuts. Skipping isolation valves or leaving no room for filter removal tends to cause bigger problems later than the time it saves during installation.
Installation Considerations
A well-chosen head unit can still underperform if it is installed carelessly.
- Mount the assembly on a stable, level base so connections are not strained by weight or vibration from the pump.
- Keep enough space around filters and valves for cleaning and replacement without disconnecting other parts.
- Support pipework so the weight does not rest on threaded or bonded joints.
- Protect exposed plastic components from prolonged sun where possible, since long UV exposure can shorten their life.
- Flush the unit before connecting it to the main line so construction debris does not reach the field.
Where Shree TNB's Range Fits
Shree TNB Polymers lists the head unit port range within its Micro-Irrigation and Fittings category, alongside filters, valves, venturi injectors, and fertilizer tanks. That means the main parts of a head unit can be planned from one range, rather than matching components across several suppliers. Product specifications for individual items are best confirmed on the product pages or with the team before ordering.
The head unit connects to the rest of the network through main lines and field-level components, and the complete drip irrigation system range shows how those pieces come together. For farm-specific guidance on layout or component selection, you can reach the team through the contact page, or speak with a local dealer for on-ground support.
Final Takeaway
A head unit is the part of an irrigation system where small decisions have the biggest downstream effect. Filtration matched to the water source, correctly sized valves and fittings, gauges that show what the system is doing, and a layout that makes maintenance easy all contribute to how well the field performs later. Planning these together at the start is far easier than correcting them after the first season.
